Oliver Model No. 5 - Top View of Machine

Oliver Tribute > The Oliver No. 5 > Top View

Carriage Views

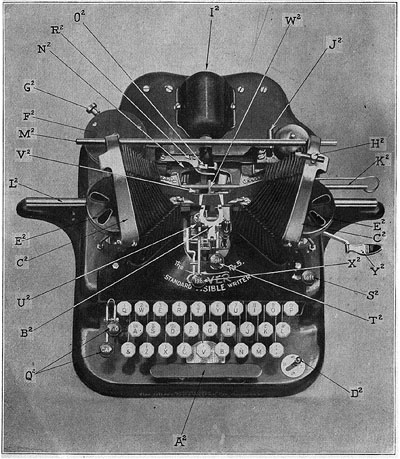

Top View of Machine

With Carriage Removed

Under Side

A². Spacebar. M². Rear Carriage-Rail.
B². Ribbon-Carrier. N². Draw-Cord.
C². Typebar Shields. O². Draw-Cord Hook.
D². Ribbon-Reverse Handle. Q². Shift-Keys.
E². Ribbon Boxes. R². Draw-Cord Hook-Fork.
F². Spring-Barrel. S². Left-Hand Marginal-Release Key.
G². Spring-Barrel Knob. T². Right-Hand Marginal-Release Key.
H². Ruling-Pencil. U². Pinion.
I². Tail-Rod. V². Thrust-Block.
J². Bell-Tapper. W². Disappearing Indicator.
K². Left-Hand Marginal-Stop. X². Tabulator Key.
L². Front Carriage-Rail. Y². Back-Spacer.
