Oliver Model No. 5 - Under Side of Machine

Oliver Tribute > Oliver No. 5 > Underside

Top View

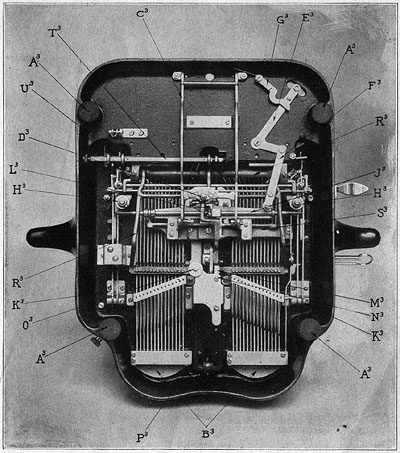

Under Side of Machine

Carriage Views

A³. Rubber Feet. K³. Shift-Lever Standards.
B³. Key-Lever Standards. L³. Ribbon-Feed Pawls.
C³. Space-Lever. M³. Supplemental Spring.
D³. Space-Lever Nut. N³. Supplemental-Spring Adjusting-Screw.
E³. Ribbon-Shift Connecting-Lever, Crooked. O³. Universal-Bar Spring Thumb-Nut.
F³. Ribbon-Shift Connecting-Lever, Straight. P³. Tail-Brace Standard.
G³. Ribbon-Shift Catch. R³. Universal Bar.
H³. Vertical-Shaft Gear-Wheel. S³. Work-Shaft Bracket.
J³. Worm-Shaft. T³. Rocker-Shaft.
U³. Shift-Cam Roller.
